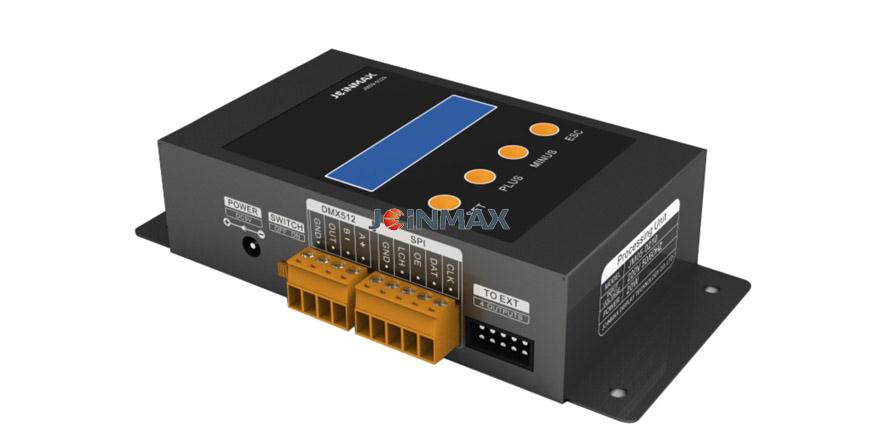

??? Lighting controller (V1.0) uses high-speed 32-bit processor, communicates with the controlling computer via the network interface. Through the network interface, it can receive real-time signals on a computer screen, and through the DMX output, 4-line serial output or 2-line serial output it can achieve real-time lighting system control. You can also use the SD card or USB interface to read an external video file for playback. This controller is particularly suitable for controlling lighting systems with 170 display units or less. Features of the Lighting controller (V1.0) are as follows:
1.Supports data transmission through Ethernet interface and UDP network protocol.
2.DMX512 output interface, can control up to 170 pixels;
3.4-line serial output interface, can control up to 300 pixels;
4.2-line serial output interface, can control up to 300 pixels;
5.Supports software setting, RS485 synchronous control;
6.Input voltage: DC5V;
7.Power consumption: <10W;
8.Supports SD card or flash disk media files;
9.Supports online upgrading;
10.Supports DMX512 addressing and status feedback.
