- Functional Description
- Specifications
- Applications

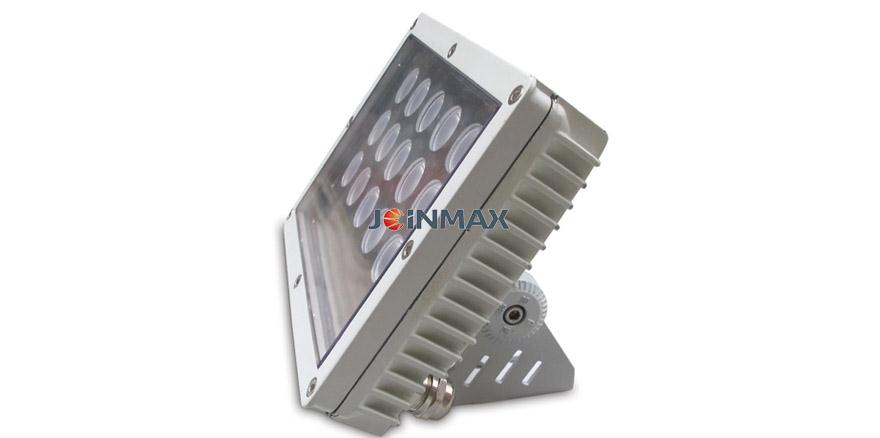

1.Small-power square project light series employs the die-casting aluminum with high heat-dissipation, equipped with high throughout LED or high-efficacy optics lens, suitable for the general lighting and wall-washing in and outside scenery.
2. Employs the external power supply method, safety, convenient and easy maintenance.
3. Multiple color available with single white, amber and full color to satisfy the different needs of customers.
4. Employ the highly-effective optics lens design and the mixing effect of red, green and blue is even and perfect.
5. Built in DMX512 decoding and drive circuit with online DMX512 address (patent number：ZL2010 2 0262526.4 ; ZL2009 1 0223737.9))which could write address in the controlling end after finishing the lamp installation, more convenient installation and better reliability.
技術分類 Technical Classification | 項目規格 Item | 參數 Parameter |
電氣性能 Electrical Properties | 供電電壓 Input voltage | DC24V |
最大功耗 Max.power consumption | ? 18W | |
光學性能 Optical Properties ? ? | 光源組成LED composition | 15顆3W大功率LED 15 pcs of 3W LED lamps |
光色 LED Color | 紅色/綠色/藍色? red/green/blue | |
最大光通量 Max. luminous flux | 750 lm | |
光束角 Beam Angle | 10°/25°/40°/60° | |
亮度等級 Brightness Grade | 每種顏色256?級 256 grade per color | |
光通維持率 luminous maintenance rate | 50000 hour（@70%） | |
控制方式 Control Mode | 控制接口 Interface | DMX512 |
控制系統 Control System | 中鳴科技 Easyplay5.0 (Joinmax) | |
結構性能 Structure | 尺寸(長x寬x高) Dimension (L*W*H) | 170X133X112（mm） |
重量 Weight | 0.8Kg | |
燈體材料Material | 壓鑄鋁成型 Die-casting aluminum | |
表面顏色 Surface Color | 黑色 Black | |
透鏡Lens | 聚碳酸酯PC | |
燈具連接 Connection | 4芯防水接插件，2芯電源電纜4-pin waterproof connector 2-pin power cable | |
防護等級 Protection Rating | IP65 | |
工作溫度 Work Temperature | -20℃～50℃ | |
工作濕度 Work Humidity | 0～90% | |
最大級聯數 Max. cascade connection qty | 電源最大級聯10支 10pcs (power) 信號最大級聯?32支 32pcs (Signal) | |
使用環境 Work Environment | 干燥/潮濕 Dry/Wet | |
安全性能 Safety | 認證 Certificate | CE |
供電方式 Input Voltage | 發光顏色 LED Color | 產品編號 Model |
DC24V | 紅色/綠色/藍色組合red/green/blue | JM06-301501RGB |
冷白(cold white) 5700K | JM06-301501RM |
-
