技術分類Technical?Classification

項目規格Item

參數Parameter

電氣性能Electrical?Properties

供電電壓Input?voltage

DC24V

最大功耗Max.power?consumption

8W/10W/12W

光學性能Optical?Properties

光源組成LED?composition

90顆/108顆/144顆LED

90PCS/108PCS/144PCS?LED

顯示像素Pixels

1像素/米?1pixels/meter

光色LED?color

RGB/白光/黃光/藍光

GUB/White/Yellow/Bule

光束角Beam?angle

18°

光通維持率Luminous?maintenance?rate

50000?hour（@70%）

控制方式Control?Mode

控制接口Interface

DMX512

控制系統Control?System

中鳴科技Easyplay5.0

結構性能Structure

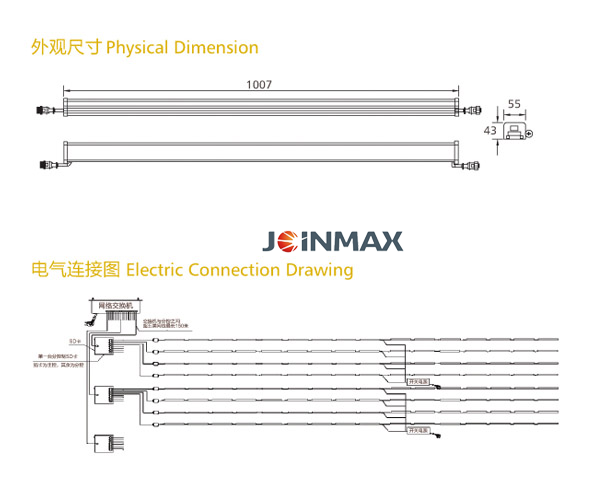

尺寸(長x寬x高)?Dimension?(L*W*H)

1007x55x43mm

重量Weight

1.0Kg

燈體材料Material

鋁型材燈體?阻燃耐候級阻燃PC

Aluminium?housing?and?flame?retardant?PC

工作溫度Work?temperature

-20℃～50℃

工作濕度Work?humidity

0～90%

儲存溫度?Storage?temperature

-40℃～10℃

使用環境Work?Environment

干燥/潮濕dry/humid

安全性能Safety

防護等級?

Protction?Rating

IP66

供電方式

Input?Voltage

發光顏色LED?Color

產品編號Model

DC24V

RGB?PH5?144顆12W

RGB?PH5?144pcs?12W

JZ07-114401-011

白光?PH5?108顆?10W

White?PH5?108pcs?10W

JZ07-110801-011

黃光?PH5?108顆?10W

Yellow?PH5?108pcs?10W

JZ07-110803-011

藍光?PH5?108顆?10W

Blue?PH5?108pcs?10W

JZ07-110802-011

白光?PH5?90顆?8W

White?PH5?90PCS?8w

JZ07-109001-011
