- Functional Description
- Specifications
- Applications

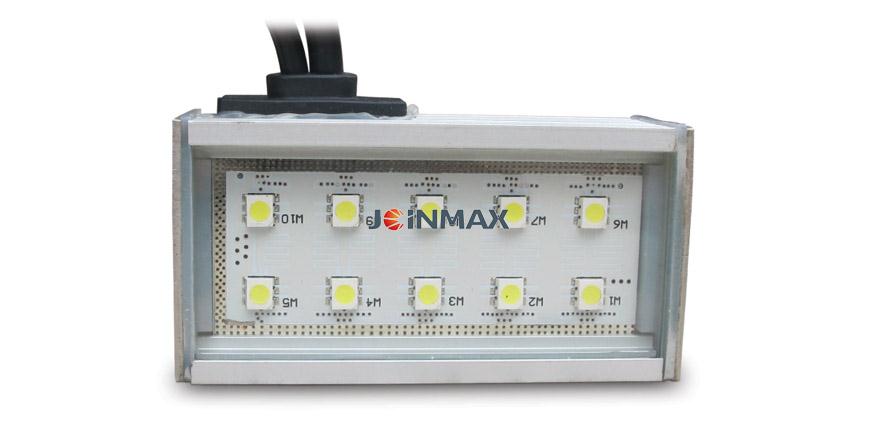

1. This series of spotlight lamp is made from exuded aluminum with excellent heat-dissipation effect, good light transmittance ratio glass mask and high light efficacy as well as wide vision angle.
2. Employ middle-power LED light source with single color or multiple color light source, abundant color changes available and good color saturation, suitable for the décor lighting in and outside.
3. Employ on-line DMX512 patent technology 【patent number：ZL 2010 2 0262526.4：ZL 2009 1 0223737.9】
4. To write the address in the controlling end after finishing the lamp installation, more convenient installation and better reliability.
5. Fully-concealed structure reaching IP65 protection grade ,easy installation suitable for use in and outside.
技術分類Technical?Classification | 項目規格 Item | 參數 Parameter |
電氣性能Electrical?Properties | 供電電壓 Input?voltage | DC24V |
最大功耗 Max?power?consumption | 5W | |
光學性能Optical?Properties | 光源組成 LED?composition | 10顆中功率白色?LED?? 10pcs?of?medium?white?LED |
光色 LED?color | 冷白色 cold?white?5700K | |
光通量 luminous?flux | 250?lm | |
光束角 Beam?angle | 120° | |
亮度等級 Brightness?grade | 每種顏色256?級 256?grade?percolor | |
光通維持率 Luminous?maintenance?rate | 50000?hour（@70%） | |
控制方式 Control?Mode | 控制接口 Interface | DMX512? |
控制系統 Control?System | 中鳴科技 Easyplay5.0（joinmax） | |
結構性能Structure | 尺寸(長x寬x高)?Dimension(LxWxH) | 116mm×59mm?×34mm |
燈體材料 Material | 擠壓鋁+透明玻璃 Die-casting?aluminium+?glass | |
表面顏色 Surface?color | 銀灰色 Silver?grey | |
燈具連接 Connection | 5芯信號電纜，2芯電源電纜，帶自動編址功能。 5-pin?signal?cable+2-pin?power?cable,?automatic?addressing?function | |
防護等級 IP?grade | IP65 | |
工作溫度 Work?temperature | -20℃～50℃ | |
工作濕度 Work?humidity | 0～90% | |
最大級聯數 Max?cascade?connection?qty | 最大級聯16個燈具 ?Up?to?16?fixtures | |
使用環境 Work?Environment | 干燥/潮濕 dry/wet | |
安全性能Safety | 認證 Certificate | CE |
發光顏色 LED?Color | 產品編號 Model |
白色（5700K） White | JM02-301001RM |
-
