- Functional Description
- Specifications
- Applications
1、Employ white LED light source with high?photosynthetic?efficiency 4000K and color rendering index over 75
2、With non-fan heat dissipation management long working life as long as 50,000 hours
3、Protection grade IP54, which is suitable for indoor use
4、Employ light-distributing PC mask with advanced non-dazzling light design
5、Employ long-life multi-level dimmer power in accordance with LED weakening characteristics to achieve a stable lighting effect.
?技術分類Technical?Classification | 項目規格Item | 參數Parameter |
電氣性能Electrical?Properties | 供電電壓Input?Voltage | AC100-240V，50-60Hz |
最大功耗Max.?Power?Consumption | 10W | |
功率因數Power?Factor | PF>0.90 | |
諧波失真Total?Harmonic?Distortion | THD<15% | |
光學性能Optical?Properties | 光通量Luminous?Flux | 大于700lm?Over?700lm |
光源色溫Color?Temperature | 4000K | |
顯色指數Color?Rendering?Index | CRI>75 | |
光效Light?Efficacy | 大于70lm/W?Over?70lm/W | |
光束角Beam?Angle | 140° | |
光通維持率Luminous?maintenance?rate | 50000?hour（@70%） | |

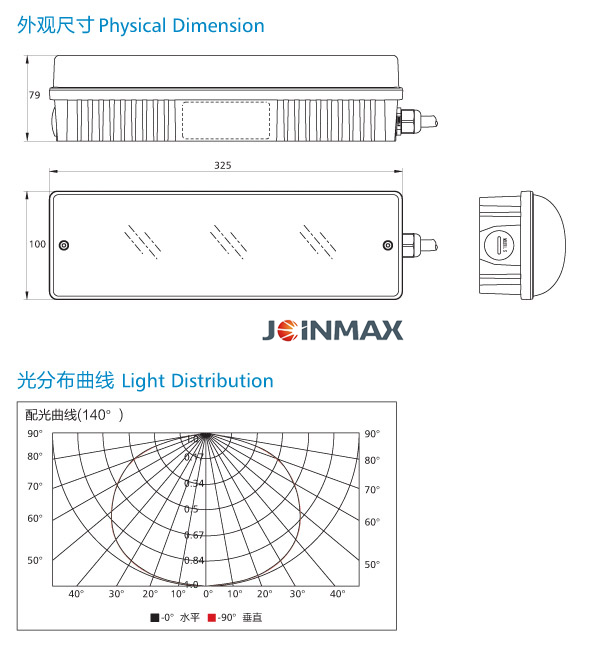

結構性能Structure | 尺寸(長x寬x高)?Dimension?(L*W*H) | 310X100X77（mm） |
重量Weight | 0.80Kg | |
燈體材料Material | 壓鑄鋁+乳白色PC罩Die-cast?aluminium?and?milk?white?PC?shade | |
表面顏色Surface?Color | 白色White | |
防護等級Protective?Grade | IP54 | |
工作溫度Work?Temperature | -20℃～50℃ | |
工作濕度Work?Humidity | 0～90% | |
使用環境Work?Environment | 室內干燥環境Indoor?Dry?Environment | |
安全性能Safety | 認證Certificate | ROHS，CE，CCC |
發光顏色?????LED?Color | 顯色指數????Color?Rendering?Index | 光通量???Luminous?Flux | 產品編號???Model |
冷白??Cold?White?5000K | CRI=70 | 750lm | JM22-209601RZ |
正白?Neutral?White?4000K | CRI=75 | 700lm | JM22-209601RL |
暖白Warm?White?3000K | CRI=80 | 680lm | JM22-209601RN |
?
-
