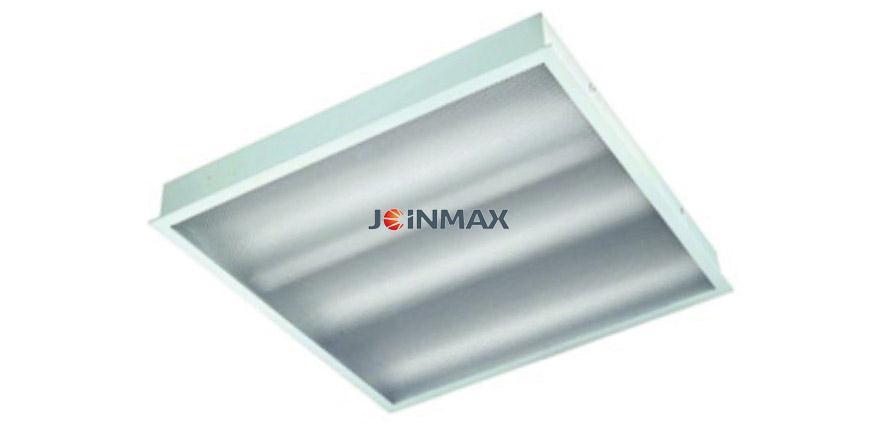

1. The outer shell of this product is made from high-strength galvanize iron plate, white look and stylish.
2. Employ high?photosynthetic?efficiency SMD LED light source with low power and attach to outer aluminum plate, excellent heat dissipation effect and long lamp working-life
3. Special-designed light-distributing PC mask with high light transmission rate, even light distribution and without dazzling light
4.? External constant current with good heat radiation and prolong light lamp working-life
5. ?Could be installed embedded or lifted.
?技術分類Technical?Classification | 項目規格Item | 參數Parameter |
電氣性能?Electrical?Properties | 供電電壓Input?Voltage | AC100-240V，50-60Hz |
最大功耗Max.?Power?Consumption | 30W | |
功率因數Power?Factor | PF>0.90 | |
諧波失真Total?Harmonic?Distortion? | THD<15% | |
光學性能Optical?Properties | 光通量Luminous?Flux | 大于2100lm |
光源色溫Color?Temperature | 5000K | |
顯色指數Color?Rendering?Index | CRI>70 | |
光效Light?Efficacy | 大于70?lm/W | |
光束角Beam?Angle | 160 | |
光通維持率Luminous?maintenance?rate | 50000?hour（@70%） | |

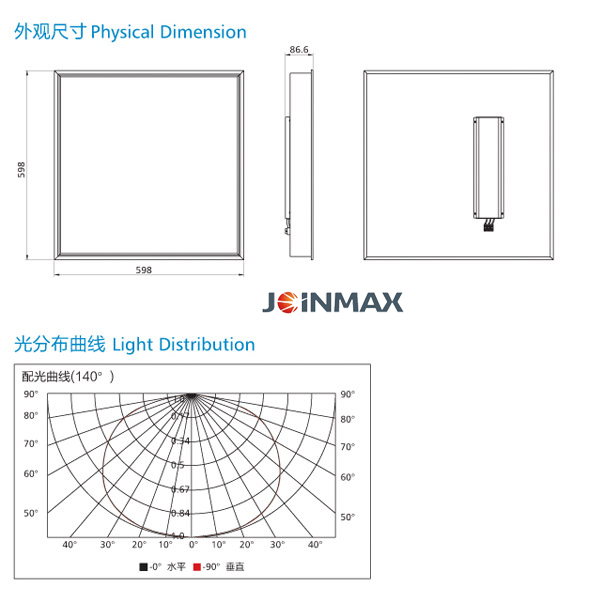

結構性能Structure | 尺寸(長x寬x高)?Dimension?(L*W*H) | 598X598X87m） |
重量Weight | 2.50Kg | |
燈體材料Material | 鍍鋅板成型+磨砂PC罩Zinc-coating?iron?plate?and?frosted?PC?shade | |
表面顏色Surface?Color | 白色?White | |
工作溫度Work?Temperature | -20℃～50℃ | |
工作濕度Work?Humidity | 0～90% | |
使用環境Work?Environment | 室內干燥環境Indoor?Dry?Environment | |
安全性能Safety | 認證Certificate | ROHS，CE，CCC |
?????
發光顏色 LED?Color | 顯色指數 Color?Rendering?Index | 光通量 Luminous?Flux | 產品編號 Model |
冷白 Cold?White?5000K | CRI=70 | 2100lm | |
正白Neutral?White?4000K | CRI=75 | 1900lm | JM20-242001RL |
暖白 Warm?White?3000K | CRI=80 | 1800lm | JM20-242001RN |
?
????
????
?
-
