- Functional Description
- Specifications
- Applications
1、Die-casting aluminum, good heat dissipation function, high efficiency and wide viewing angle.
2、Adopt low power SMD3 in 1 LED light source. Can choose several color light source. Suitable for? indoor??? and outdoor architectural decorative lighting.
3、Low voltage power supply, with DMX512 control bus, can display static or dynamic lighting effects.
4、Fully sealed structure, IP65, easy installation, suitable for outdoor environment.
5、Light has test function for voltage, temperature and broken LED dots. The lights inside information can be transmitted to the computer by DMX bus.
技術分類 Technical Classification | 項目規格 Item | 參數 Parameter |
電氣性能 Electrical Properties | 供電電壓Input Voltage | DC48V |
最大功耗Power Consumption | 22W | |
光學性能 Optical Properties ? ? ? | 光源組成LED Composition | 80pcs low power 3 in 1 SMD LED |
光色 Color | RGB | |
最大光通量Max Flux | 420 lm | |
光束角Beam Angle | 120° | |
顯示單元（像素）Pixels | 40pixel/m | |
亮度等級Brightness Grade | 256 grade | |
光通維持率Lumen Maintenance | 50000 hour（@70%） | |
控制方式Control Mode | 控制接口Control Connection | DMX512 |
? | 控制系統Control System | JoinmaxEasyplay5.0 |

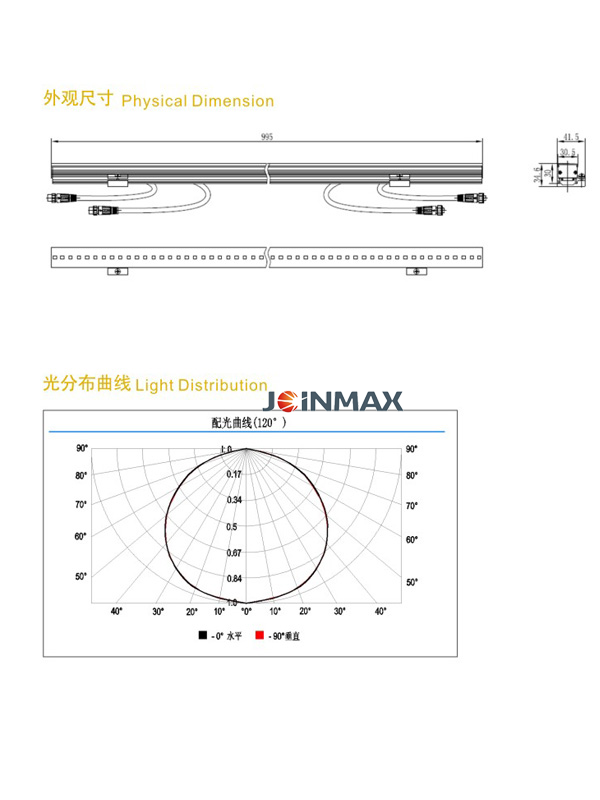

結構性能 Structure | 尺寸Size | 995mm(L)×41.5mm(W)×34.6mm(H) |
燈體材料Material | Die-casting aluminum | |
表面顏色Surface Color | Gray | |
燈具連接Light Connection | 2-pin power cable+4-pin signal cable | |
防護等級IP Grade | IP67 | |
工作溫度Work Temperature | -20℃～50℃ | |
工作濕度Work Humidity | 0～90% | |
最大級聯數Connection Qty | Max10pcs lights | |
使用環境Work Environment | Dry and Wet | |
安全性能 | 認證Certificate | CE，CCC |
Color | Product Number |
RGB | JM07-208001RGB |
-
